From duty data
to valve geometry.

A concept prototype for automating valve sizing entry. Bring in a file, review every extracted valve, and inspect the resulting 3D concepts.

Explore the live demo

The sizing workspace

One file can become several reviewable valve concepts.

INTERACTIVE DEMONSTRATION
Valve Studio/Built-in example
LOCAL DEMO
01

Bring in the duty data

Read a sample, then load it. The same three valves are in every batch file. Data stays in this browser session.

Three valves · PDFA readable three-page duty packet
File
Three valves · ExcelOne row per valve, with units in the headings
File
Three valves · WordThe same packet as a Word document
File
Three valves · CSVThe same batch in a simple data table
File
Three valves · TSVTab-separated copy of the spreadsheet
File
Three valves · textLabelled values grouped by valve
File
Three valves · JSONStructured records for system handoff
File

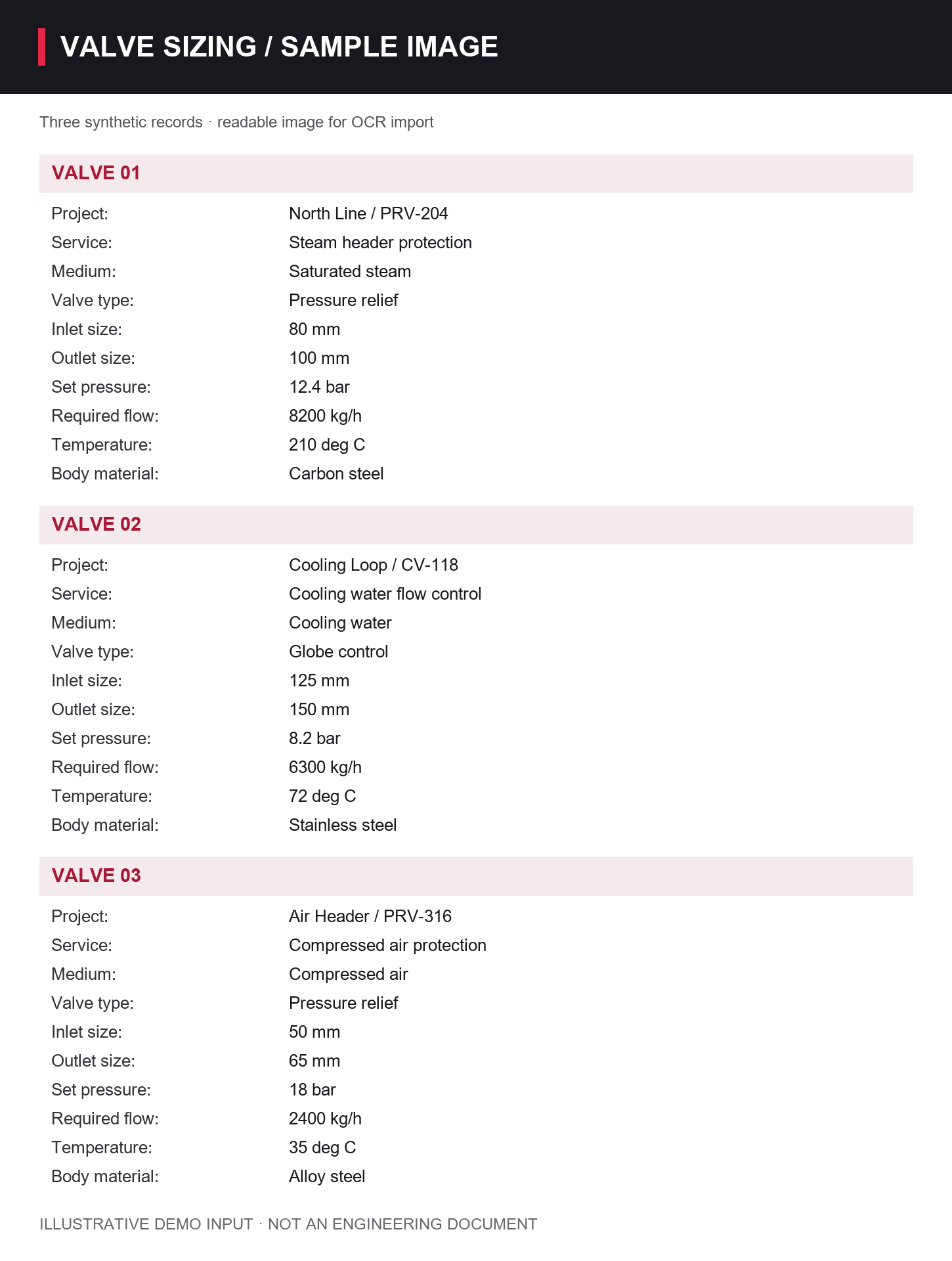

Three valves · imageA clear duty sheet read with OCR
File
Original single valveThe first example from the original demo
File

Three illustrative valves are ready to review. Try a sample file or upload your own.

02

Review the extracted valves

Select a row to check every value and preview its geometry.

3 RECORDS · 3 READY · 0 GENERATED

Scroll the table sideways to see every value and status.

Project / tagFamilyIn → OutPressureFlowStatus
Built-in examplePressure relief80 → 100 mm12.4 bar8,200 kg/hReady
Built-in exampleGlobe control125 → 150 mm8.2 bar6,300 kg/hReady
Built-in examplePressure relief50 → 65 mm18 bar2,400 kg/hReady
View extracted source text Built-in example
Project: North Line / PRV-204
Service: Steam header protection
Medium: Saturated steam
Valve type: Pressure relief
Inlet size: 80 mm
Outlet size: 100 mm
Set pressure: 12.4 bar
Required flow: 8,200 kg/h
Temperature: 210 °C
Body material: Carbon steel

Project: Cooling Loop / CV-118
Service: Cooling water flow control
Medium: Cooling water
Valve type: Globe control
Inlet size: 125 mm
Outlet size: 150 mm
Set pressure: 8.2 bar
Required flow: 6,300 kg/h
Temperature: 72 °C
Body material: Stainless steel

Project: Air Header / PRV-316
Service: Compressed air protection
Medium: Compressed air
Valve type: Pressure relief
Inlet size: 50 mm
Outlet size: 65 mm
Set pressure: 18 bar
Required flow: 2,400 kg/h
Temperature: 35 °C
Body material: Alloy steel
03

Check valve 01

Correct any field. Changes update the preview immediately.

04

Inspect the result

GEOMETRY CONCEPT
Preparing 3D preview…
CONFIGURATIONPressure relief
NOMINAL INLET80 mm
SET PRESSURE12.4 bar

Illustrative geometry only. This prototype does not perform engineering sizing, product selection, or code compliance checks.

A shorter route from spec to shape.

One incoming packet becomes structured sizing drafts. An engineer can review exceptions, then inspect and export each concept.

INPUTOne file, many valves

Import a batch from familiar document and table formats.

REVIEWVisible extracted values

Compare rows, correct fields, and see which valves are ready.

VISUALIZE3D concepts

Generate a batch, rotate each model, and export .GLB files.
